Midea 2.0kW XtremeSave Reverse Cycle Split System
Supplied & Installed $1249 $1349
Supplied & Installed $1249 $1349
Supplied & Installed $1349 $1449
Supplied & Installed $1499 $1599
Supplied & Installed $1949 $2049
Supplied & Installed $2149 $2249
Supplied & Installed $2399 $2499
Supplied & Installed $1499 $1599
Supplied & Installed $1699 $1799
Supplied & Installed $2099 $2199
Supplied & Installed $2299 $2399
Supplied & Installed $2499 $2599
Supplied & Installed $1399 $1499
Supplied & Installed $1549 $1649
Supplied & Installed $2049 $2149
Supplied & Installed $2299 $2399
Supplied & Installed $3099 $3199
Supplied & Installed $1599 $1699
Supplied & Installed $1699 $1799
Supplied & Installed $2149 $2249
Supplied & Installed $2449 $2549
Supplied & Installed $2849 $2949
Supplied & Installed $1429 $1529
Supplied & Installed $1529 $1629
Supplied & Installed $1629 $1729
Supplied & Installed $1699 $1799
Supplied & Installed $2089 $2189
Supplied & Installed $2199 $2299
Supplied & Installed $2599 $2699
Supplied & Installed $3099 $3199
Supplied & Installed $3299 $3399
Supplied & Installed $3599 $3699
Supplied & Installed $1549 $1649
Supplied & Installed $1649 $1749
Supplied & Installed $1849 $1949
Supplied & Installed $2349 $2449
Supplied & Installed $2849 $2949
Supplied & Installed $2949 $3049
Supplied & Installed $3399 $3499
Supplied & Installed $3999 $4099
Supplied & Installed $1699 $1799
Supplied & Installed $1899 $1999
Supplied & Installed $2099 $2199
Supplied & Installed $2399 $2499
Supplied & Installed $2890 $2990
Supplied & Installed $2999 $3099
Supplied & Installed $3299 $3399
Supplied & Installed $3699 $3799
Supplied & Installed $1699 $1799
Supplied & Installed $1799 $1899
Supplied & Installed $1949 $2049
Supplied & Installed $2369 $2469
Supplied & Installed $2769 $2869
Supplied & Installed $2999 $3099
Supplied & Installed $3469 $3569
Supplied & Installed $3899 $3999
At Home Comfort Air, we understand the importance of having a functional and reliable air conditioning system in your home. That's why we offer fast and professional installation services to get you up and running in no time. Whether you're looking for a split system for a single room or your entire house, we've got you covered. Our team of experienced technicians can have your new air conditioning system installed in a matter of days, so you can enjoy comfortable living as soon as possible. Don't wait any longer, get a free quote now by submitting our form. Please include as many details as possible to help us understand your needs better. Thank you for choosing Home Comfort Air for your air conditioning needs.
To assist in familiarizing with industry terminology and installation principles, we have provided two house plan images as examples. These examples are among the most commonly used solutions in the industry and may serve as a reference for future communication or when submitting an enquiry form. It's important to note that these are not the only ways to install split systems, but they are widely used and can help guide your decision making process.

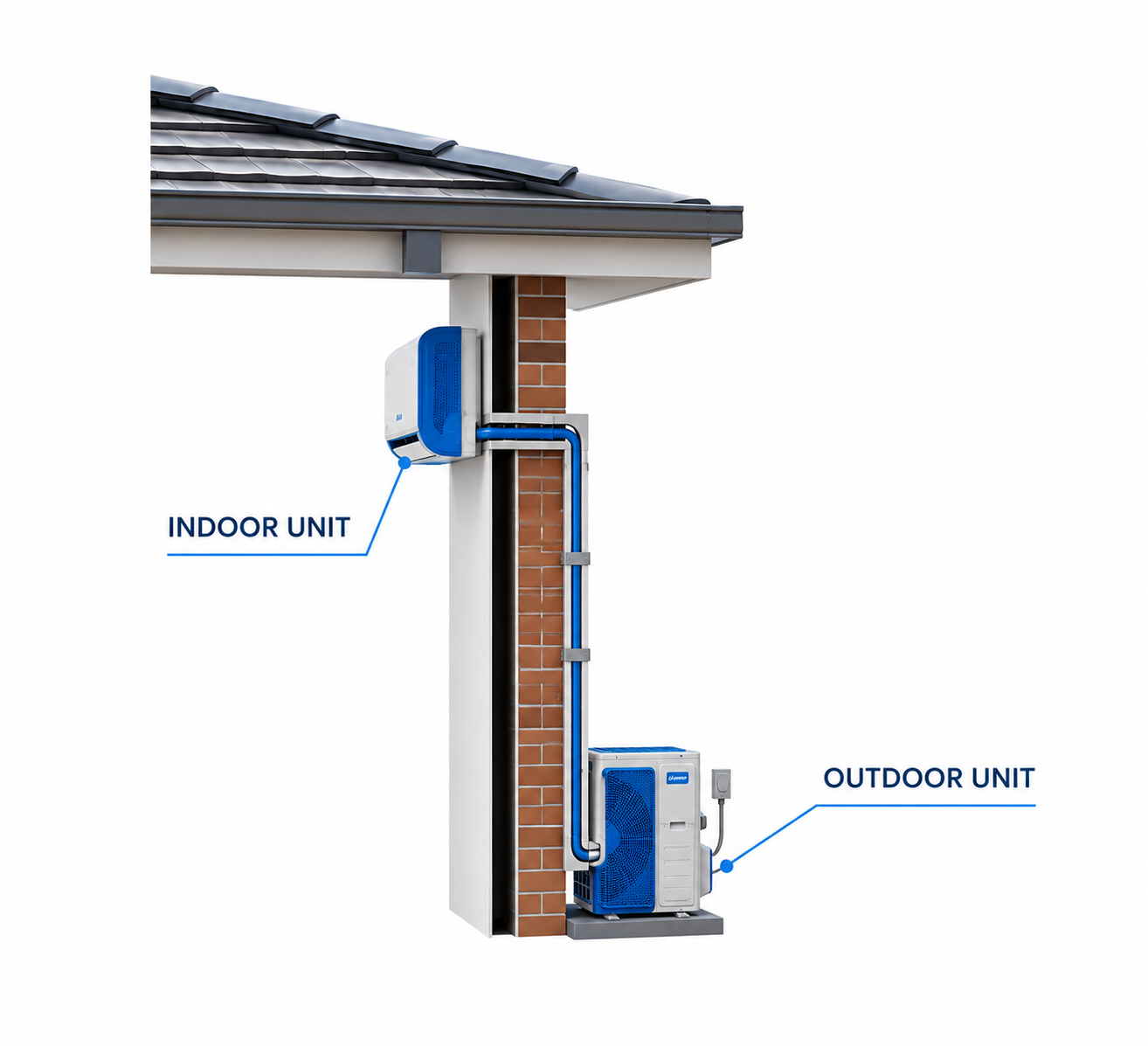

Back-to-back installation refers to the placement of two air conditioning units back-to-back, typically through-the-wall configuration. This type of installation is commonly used for commercial and residential properties where the indoor unit (evaporator) and outdoor unit (condenser) are installed on opposite sides of a common wall. This allows for the installation of the two units to be done in a relatively small space, making it ideal for situations where space is limited. Back-to-back installation is particularly useful in apartment buildings and townhouses where there may be limited space for the outdoor unit. It also helps to preserve the aesthetic of the building and can be less invasive then other types of installation.

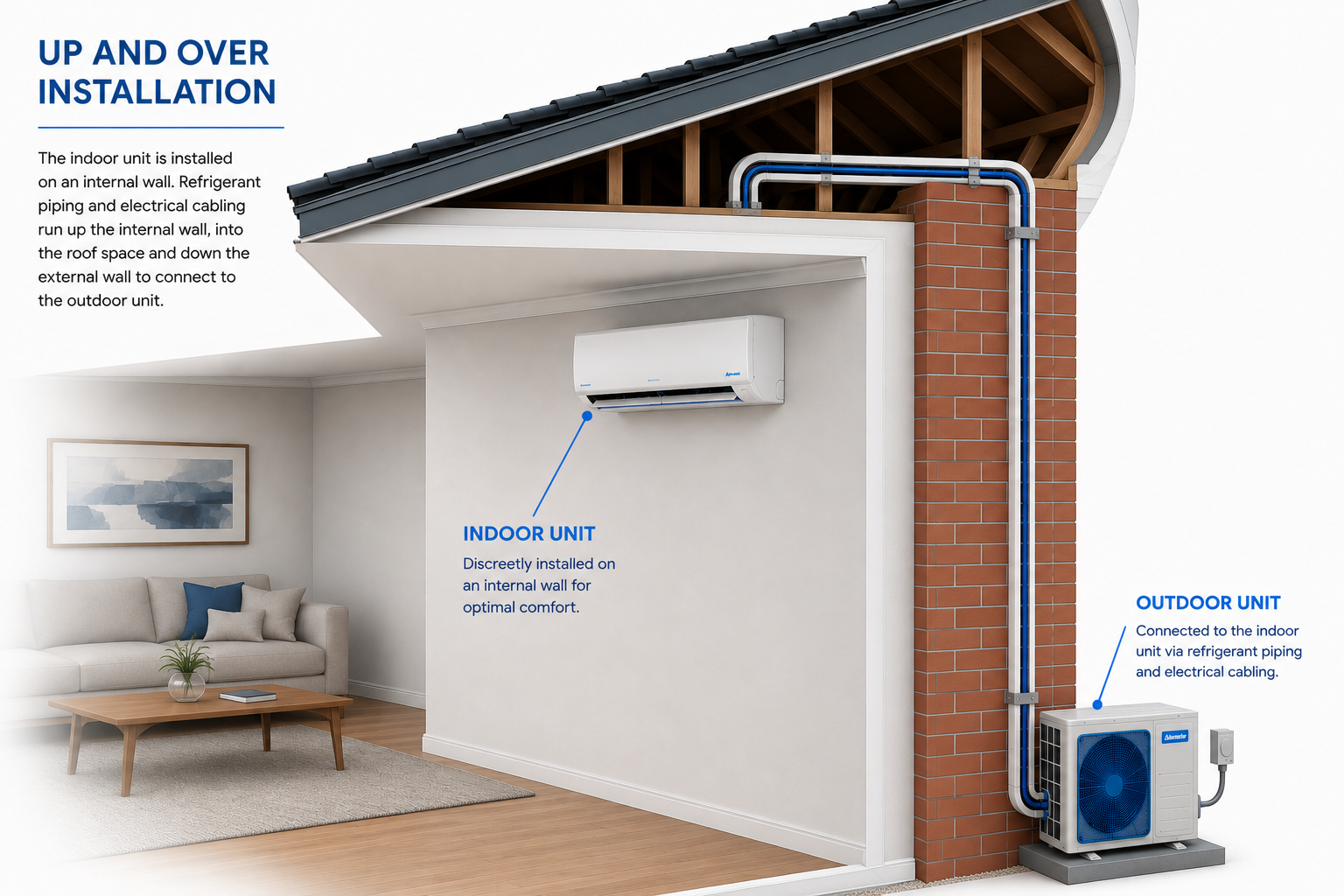

The Up-and-Over installation method is used when the outdoor unit needs to be located away from the indoor unit, often due to the layout of the building or to conceal the unit from view. This type of installation requires running copper pipes up and over to the new location. It's important to note that the further the distance between the indoor and outdoor unit, the more materials will be required and the cost of installation will increase. Additionally, the location of the indoor unit must have an existing drain for evaporated water measuring 20-25mm, as is necessary for all air conditioning systems.
When considering a split system air conditioning installation, it's important to keep in mind two key points. First, the indoor unit will always be connected to the outdoor unit. Second, the indoor unit will always require a drain to remove evaporated water. These are important factors to consider when determining the location of the units and planning the installation process.
Room | Size m² | Cooling | Heating |
---|---|---|---|
Small | 3.0m x 3.0m (9 m²) | 2.5kW | 3.2kW |
Sm/Med | 5.0m x 5.0m (25 m²) | 3.5/3.7kW | 4.3kW |
Medium | 5.5m x 5.5m (30 m²) | 3.7/5.0kW | 6.0kW |
Med/lg | 6.3m x 6.3m (40 m²) | 6.0kW | 7.1kW |
Large | 7.1m x 7.1m (50 m²) | 7.1kW | 8.0kW |
XL Large | 7.7m x 7.7m (55 m²) | 8.0/9.2kW | 9.0/10.0kW |
